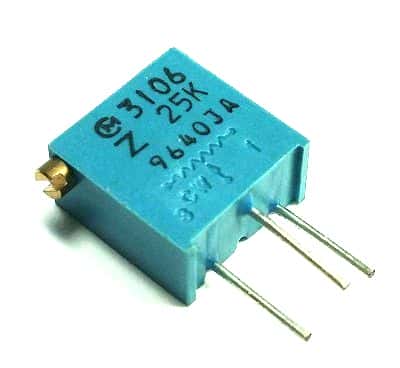

25K ohm Variable Resistor Trimpot POT3106Z-1-253 3106Z-1-253
Part Number: POT3106Z-1-253
391 available for immediate delivery
These trimmer pots are compatible with ultrasonic cleaning. A clutch mechanism that prevents excessive wiper rotation.
25 Turns +/-5
Standard Resistance Range: 10 ohm to 2M ohm
Power rating: 0.5W 70°C
Max Working Voltage: 300Vdc
Max Wiper Current: 100mA max.
Residual Resistance: 2 ohm max
Contact Resistance Variation: 3% or 3 ohm max (whichever is greater)
Dielectric Strength: 1000Vac
Insulation Resistance: 1000M ohm min (500Vdc)
Torque: 14.7mNm (150gh-cm) max
Manufactured by: Murata
Part number: POT 3106Z-1-253
