HC48-1 HC200 1A 48V Power Supply

HC48-1 HC200  1A 48V Power Supply

Manufacturer: Power-One
Part Number: HC48-1

Price: $51.50
Sorry, we are currently sold out of
'HC48-1 HC200 1A 48V Power Supply'.
Please check back later.
Code: PW104PD

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$36.95
$45.01
$90.00
$45.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Power Supplies
Vintage Part
Original Box
Original Data Sheet Enclosed
Case Size: 149.10mm x 123.7mm x 89.54mm / 5.87" x 4.87" x 3.53"

Specifications:
AC Input: 115/230Vac ±10% 47-440Hz
-(Derate Current 10 for 50Hz Operation)
Input Fusing: 115Vac @ 1A ; 230Vac @ 0.5A
DC Output: 48Vdc @ 1A
Line Regulation: ±.05% for a 10% input change
Load Regulation; ±.05% for a 50% load change
Output Ripple: 5mv Pk-Pk
Transient Response: 30µs for a 50% load change
Overload & Short Circuit Protection: Automatic current limit/foldback
Temperature Coefficient:±.03%/°C max.
Efficiency: 68% at nominal input, full load on output

Manufactured by: Power-One
Part number: HC48-1

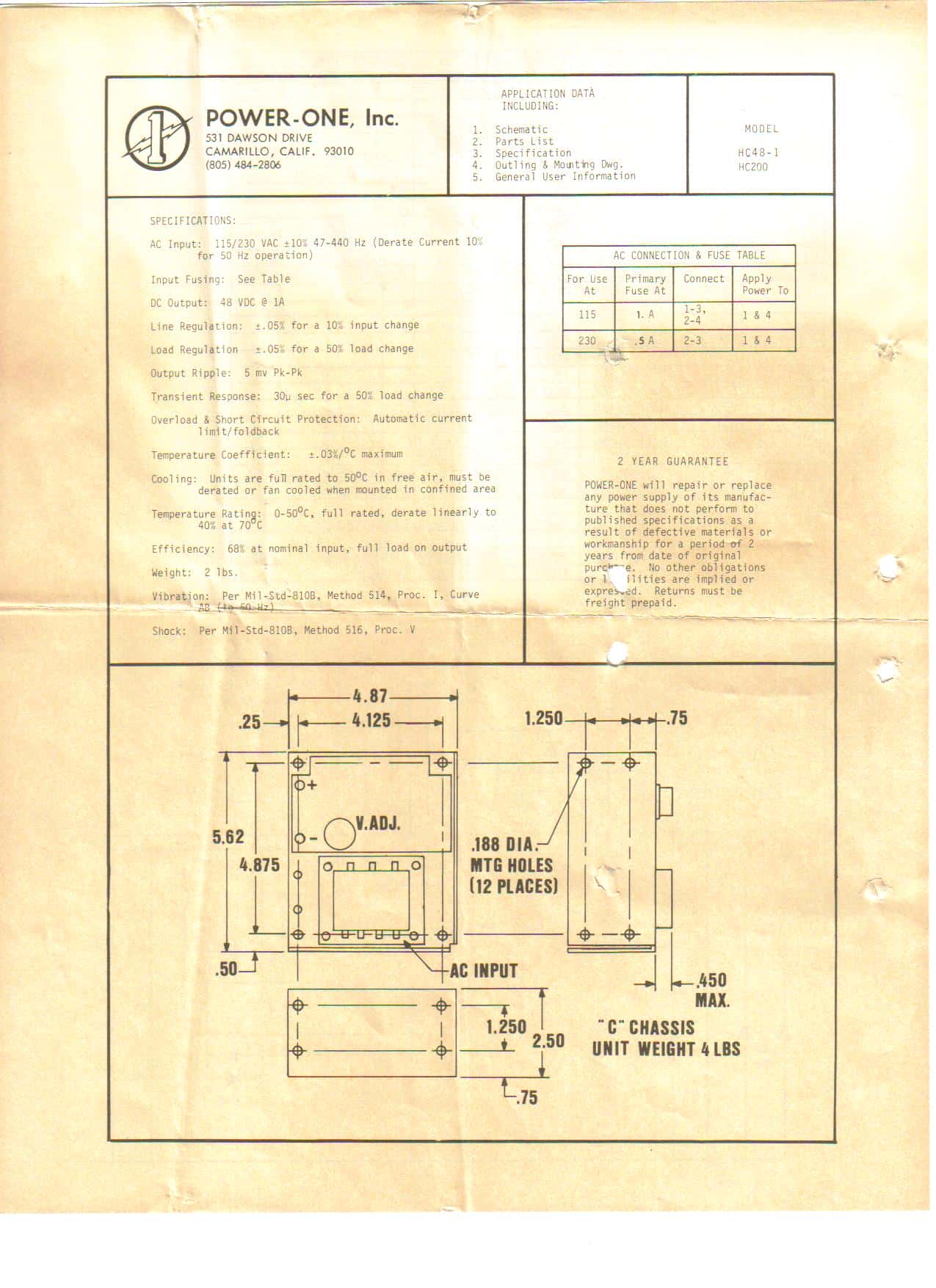

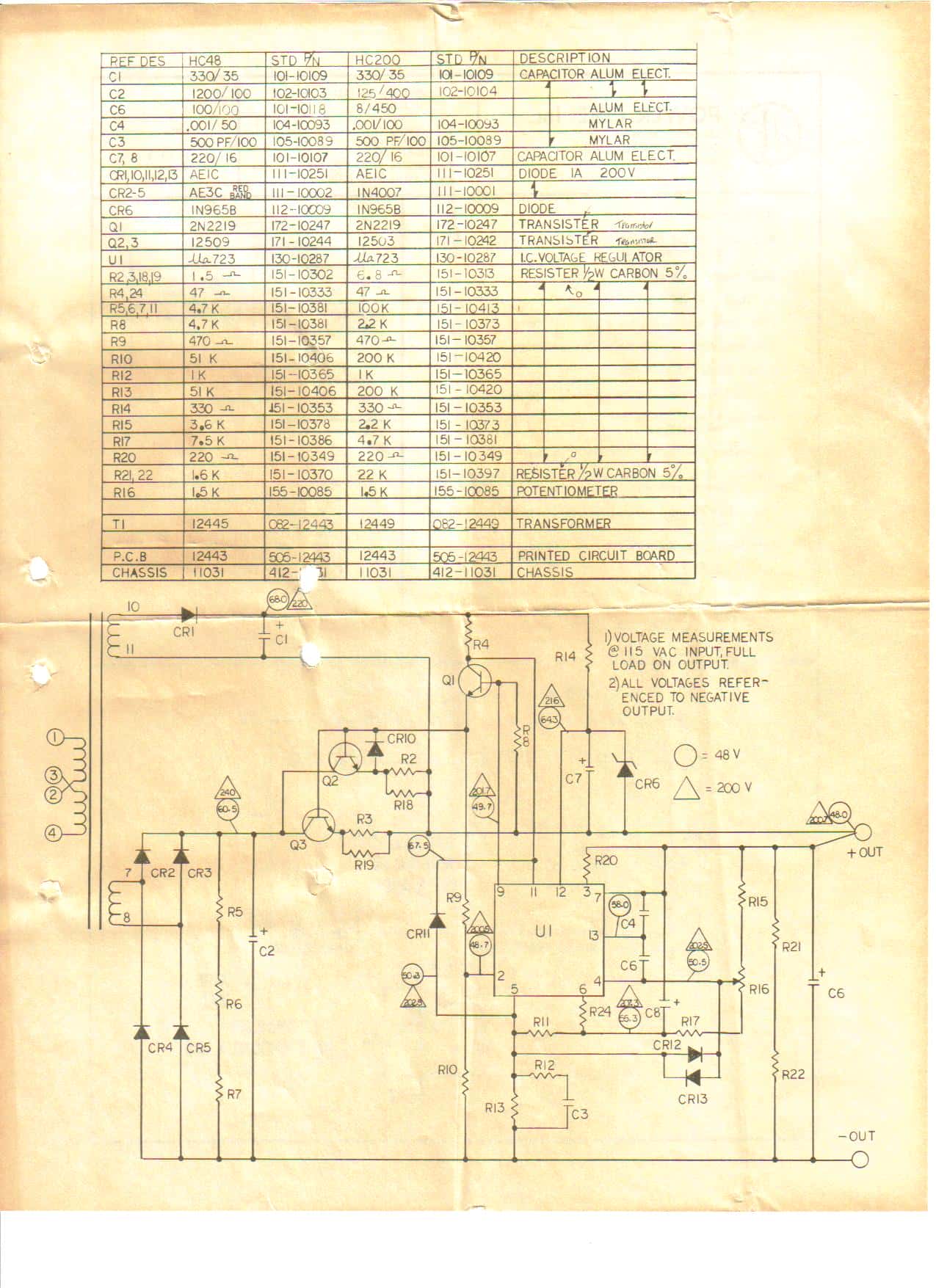

Full Datasheet: HC48-1 Pg 1 , HC48-1 Pg 2
