D28-4.0 4 Amp 28V Linear DC Power Supplies Open Frame

D28-4.0 4 Amp 28V Linear DC Power Supplies Open Frame

Manufacturer: Condor
Part Number: D28-4.0

Price: $68.00
Sorry, we are currently sold out of
'D28-4.0 4 Amp 28V Linear DC Power Supplies Open Frame'.
Please check back later.
Code: PW112PD
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$15.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$29.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information


Linear DC Power Supply
Original Box and Data Sheet
Open Frame
Single Output
Case Size: 9" x 4.88" x 2.75"

Specs:

AC Input: 115/230 Vac 10%
Input Frequency: 47-440Hz
Derate Output Current: 10% for 50Hz
DC Output: 28V @ 4.0A
Adjustment: 5% min.
Line Regulation: .05% for a 10% input change
Load Regulation; .05% for a 50% load change
Output Ripple: .02% Pk-Pk max.
Transient Response: 50s for 50% load change
Overload & Short Circuit Protection: Automatic current limit/foldback
Stability: .05% for 24 Hours after Warm-up
Temperature Coefficient:0.01%/C max.

Manufactured by: Condor
Part number: D28-4

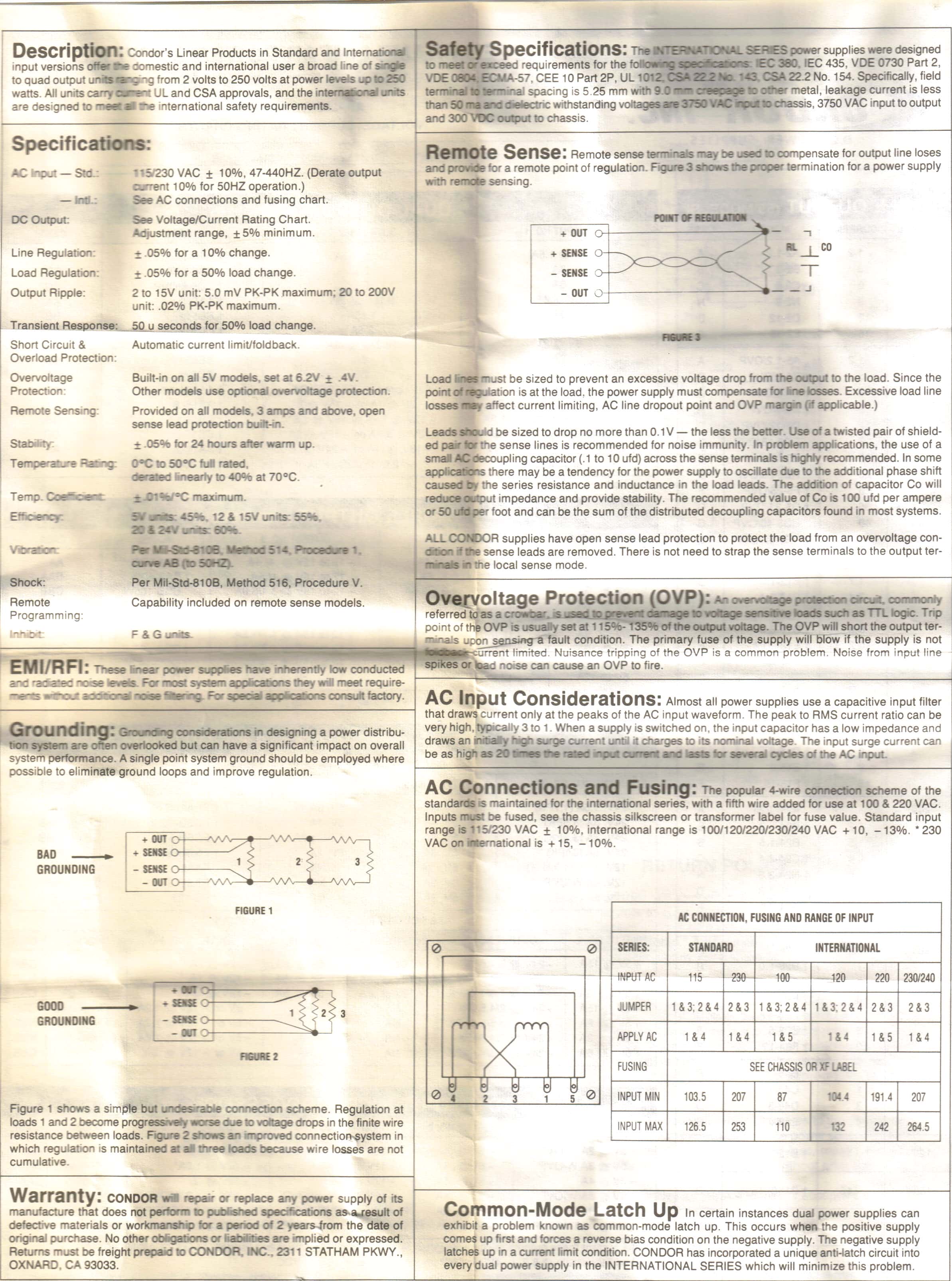

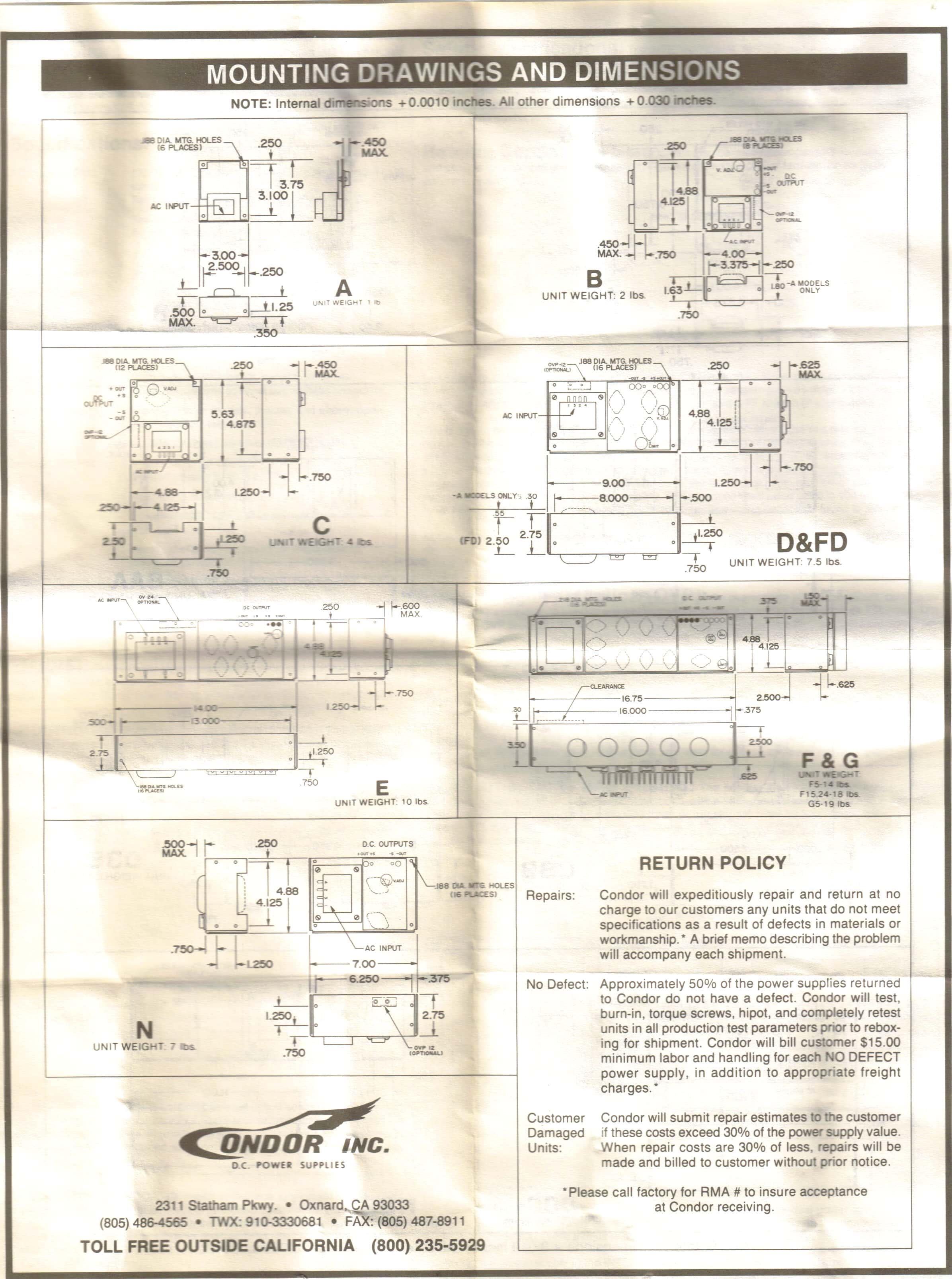

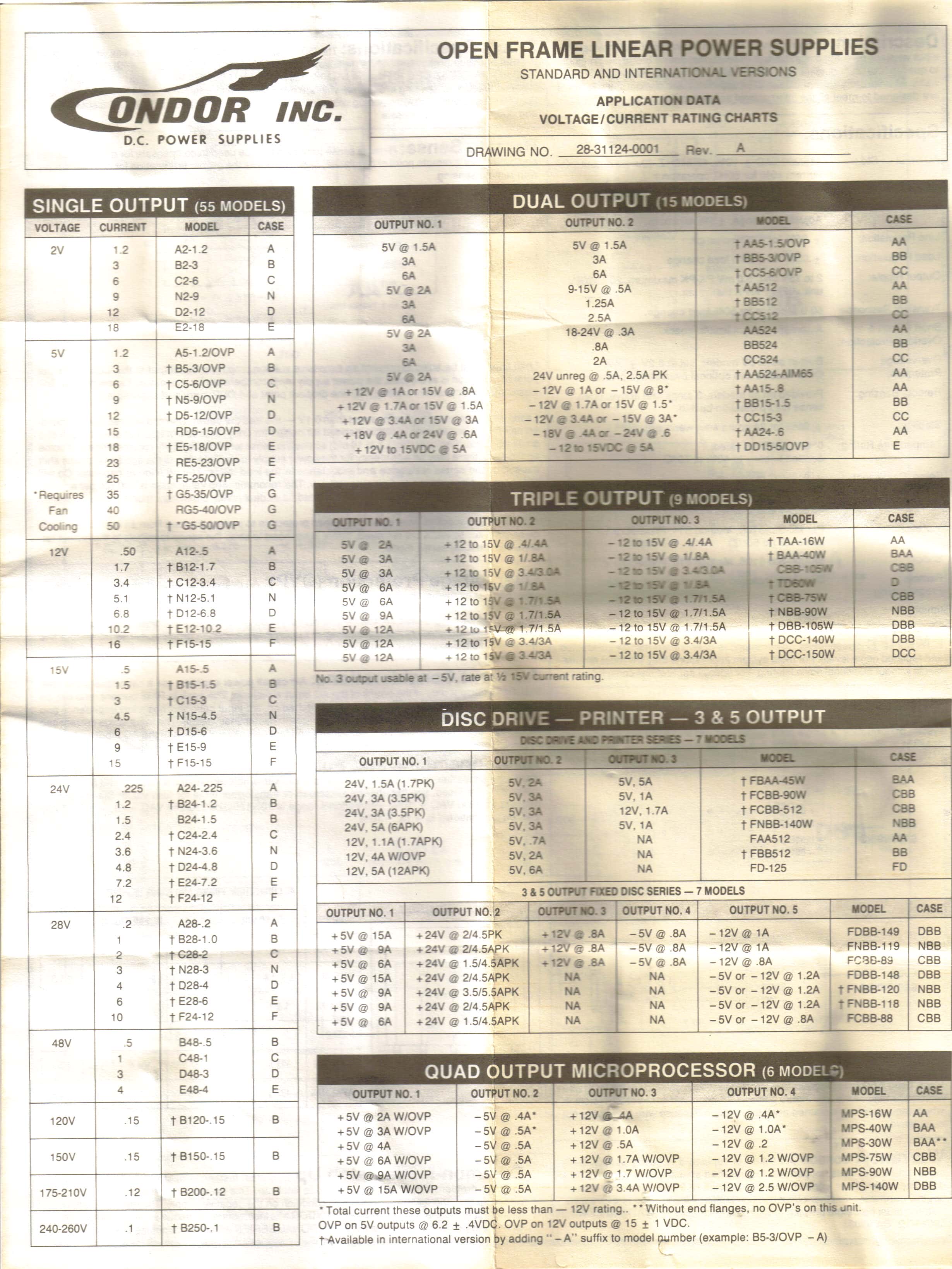

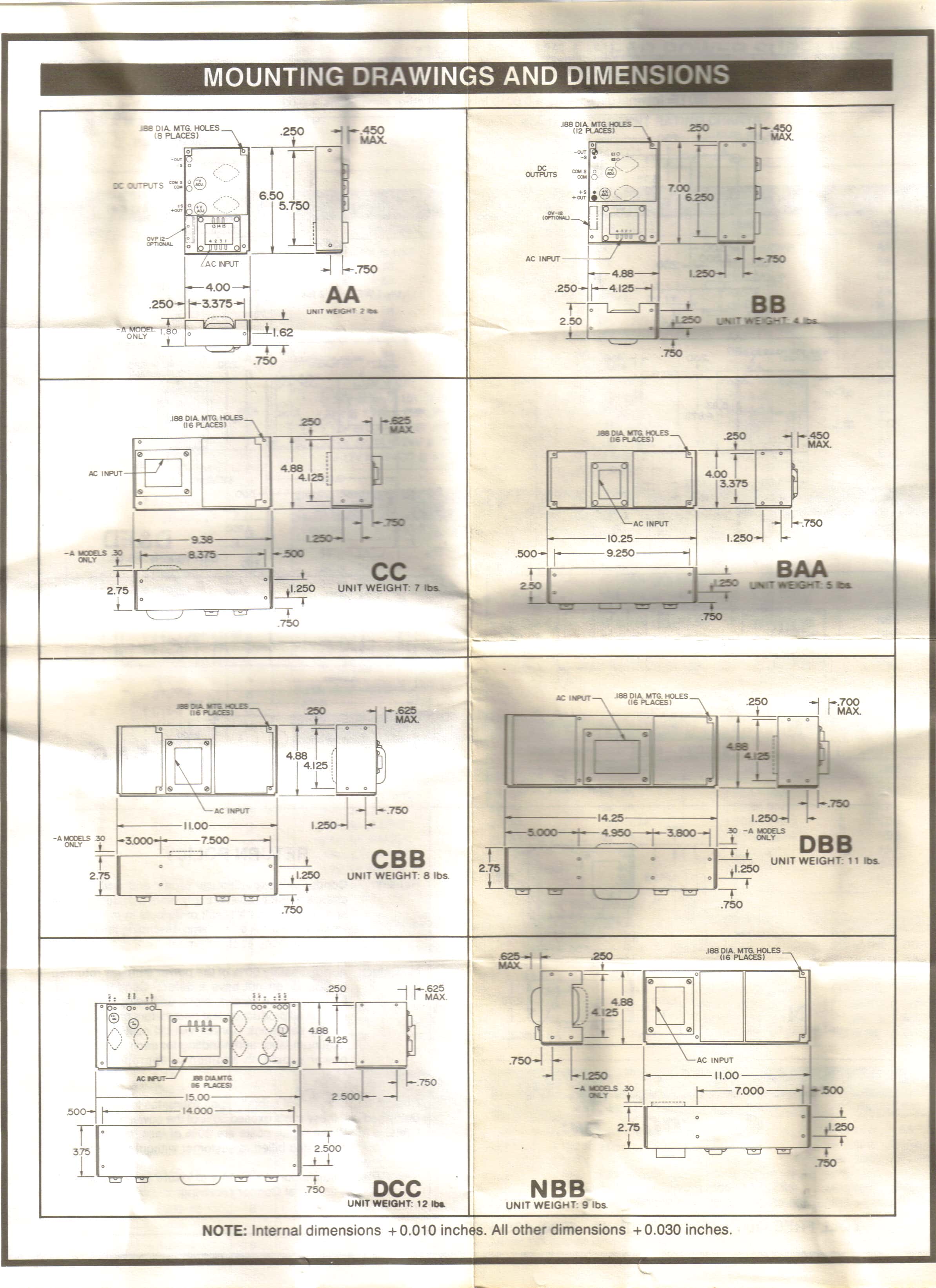

Full datasheet: D28-4 Pg 1, D28-4 Pg 2, D28-4 Pg 3, D28-4 Pg 4,
