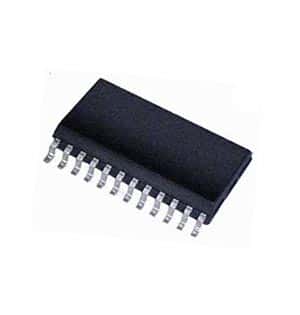

LM2575M-5.0 Step Down Voltage Regulator National Semiconductor

LM2575M-5.0 Step Down Voltage Regulator National Semiconductor

Manufacturer: National Semiconductor
Part Number: LM2575M-5.0
Amps: 1
Voltage: 5
Package: SOIC
Lead/Terminal Type: Surface Mount
Number Leads/Terminals: 24

Price: $2.50
60 available for immediate delivery
Code: G581APF12
Weight: 0.04oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.50
10+$2.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Step Down Voltage Regulators
Simple SwitcherŽ

Features
- Guaranteed 1A output current
- Requires only 4 external components
- 52 kHz fixed frequency internal oscillator
- TTL shutdown capability, low power standby mode
- High efficiency
- Uses readily available standard inductors
- Thermal shutdown and current limit protection
- P+ Product Enhancement tested

Typical Electrical Characteristics (TJ=25°C unless otherwise noted):
Output Voltage
- VIN = 12V, ILOAD = 0.2A: 5.0V typ.
- 0.2A ≤ ILOAD ≤ 1A,8V ≤ VIN ≤ 40V: 5.0V typ.
Efficiency (VIN = 12V, ILOAD = 1A): 77%
Oscillator Frequency: 52kHz
Saturation Voltage (IOUT = 1A): 0.9V
Max Duty Cycle (ON): 98%
Current Limit (Peak Current): 2.2A
Output Leakage Current (Output = -1V): 7.5mA
Quiescent Current: 5mA
Standby Quiescent Current (ON /OFF Pin = 5V (OFF)): 50uA
Thermal Resistance: 100°C/W

Applications:
- Simple high-efficiency step-down (buck) regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- Positive to negative converter (Buck-Boost)

Manufactured by: National Semiconductor
Part Number: LM2575M-5.0

Full Datasheet: 1A 5V Switching Voltage Regulator National Semi
