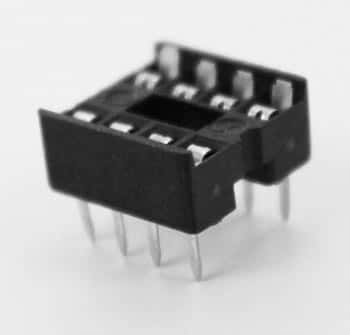

8 Pin IC Socket Low Profile Open Frame TCI T02-08

8 Pin IC Socket Low Profile Open Frame TCI T02-08

Manufacturer: TCI
Part Number: T02-08
Package: DIP
Mounting: Through Hole
Number Leads/Terminals: 8
Material: Thermoplastic
Color: Black
Temperature: 85
RoHS Compliant: Yes
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open

Price: $0.22
551 available for immediate delivery
Code: SK009PF03
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.22
10-99$0.20
100+$0.15
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

IC Sockets

Features:
- Dual contacts
- Open Frame
- Stackable end-to-end and side-to-side
- Polarization mark

Using IC sockets is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.

Materials:
Insulator: Thermoplastic UL 94V-0
Contact: Phosphor bronze, tin alloy plating

Number of Pins: 8
Row Spacing: 7.62mm (0.30")
Pitch: 2.54mm (0.10")
Mounting Style: Through Hole
Termination Method: Solder
Frame Type: Open
Package: DIP
Contact Resistance: 0.02 ohm max.
Insulation Resistance: 1000M ohm max.
Insertion Force: 1.5N (340 gram)
Retention Force: 0.7N (25 gram)
Operating Temperature: -55�C to 85�C

Body Dimensions:
Length: 10.16mm (0.40")
Width: 10.16mm (0.40")
Height (excluding pins): 4.8mm (.19")

Manufactured by: TCI
Part Number: T02-08

Full Datasheet: 8 Pin IC Sockets Dual Contact

RoHS Compliant
