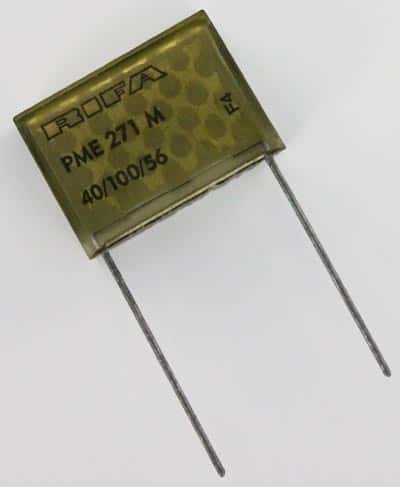

0.47uF 250VAC X2 Paper Suppression Capacitor Evox Rifa PME271M647K

0.47uF 250VAC X2 Paper Suppression Capacitor Evox Rifa PME271M647K

Manufacturer: Evox Rifa
Part Number: PME271M647K
Capacitance (uF): .47
Voltage (Vac): 250
Tolerance (%): 10
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Material: Metallized Paper
Color: Gold
Temperature: 100
Shape: Rectangle
Pitch (mm): 25.4
Termination Method: Solder

Price: $2.50
15 available for immediate delivery
Code: BX092APH09
Weight: 0.52oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA First Class Shipping Rates
$00.01
$15.00
$4.85
$15.01
$25.00
$5.85
$25.01
$35.00
$6.85
$35.01
$45.00
$8.85
$45.01
$55.00
$9.85
$55.01
$75.01
$11.85
$75.01
$100.00
$12.85
$100.01
$200.00
$14.85
$200.01
$300.00
$15.85
$300.01
$500.00
$17.85
$500.01
+
$18.85

Priority Mail Shipping Costs:

Order Total Minimum
Order Total Maximum
USA Priority Mail Shipping Rates
$00.01
$15.00
$9.50
$15.01
$25.00
$10.50
$25.01
$35.00
$11.50
$35.01
$45.00
$12.50
$45.01
$55.00
$13.50
$55.01
$75.01
$14.50
$75.01
$100.00
$16.50
$100.01
$200.00
$18.50
$200.01
$300.00
$21.50
$300.01
$500.00
$24.50
$500.01
+
$25.50

Canada First Class International

Order Total Minimum
Order Total Maximum
Canada First Class International
$00.01
$45.00
$14.95
$45.01
$90.00
$29.95
$90.01
$150.00
$49.95
$150.01
$300.00
$59.95
$300.01
$700.00
$79.95
$700.01
$2000.00
$99.95

Canada Priority Mail

Order Total Minimum
Order Total Maximum
Canada Priority Mail
$00.01
$45.00
$19.95
$45.01
$90.00
$39.95
$90.01
$150.00
$59.95
$150.01
$300.00
$79.95
$300.01
$700.00
$99.95
$700.01
$2000.00
$109.95

International - Outside US / CA

Order Total Minimum
Order Total Maximum
International - Outside US / CA
$100.00
$150.00
$79.95
$150.01
$300.00
$99.95
$300.01
$500.00
$139.95
$500.01
$1000.00
$169.95
  View shipping costs

Additional Information

Metallized Paper EMI Suppression Capacitors

The PME271M capacitors are intended for use as interference suppressors in X2 (across-the-line) applications. They are made of multi-layer metallized paper and are encapsulated and impregnated in self-extinguishing material which meets the requirements of UL94V-0.

Features:
- Self-Healing-ensures long life even when subjected to frequent overvoltages
- Impregnated Dielectric-good resistance to ionisation
- Excellent Stability

Capacitance: 0.47uF
AC Voltage: 250 VAC
Tolerance: 10%
Climate Category: 40/100/56

Dimensions:
Length: 30.5mm (1.20")
Width: 15.3mm (0.60")
Height: 22.0mm (0.87")
Lead Space: 25.4mm (1.0")

Manufactured by: Evox Rifa
Part Number: PME271M647K

For reference only, we are providing a datasheet for this part. Please note that the information provided in it is for the 275 VAC version of this series. West Florida Components assumes no liability for this information.

Full Datasheet: X2 EMI Suppressor 0.47mF 250VAC 10%
