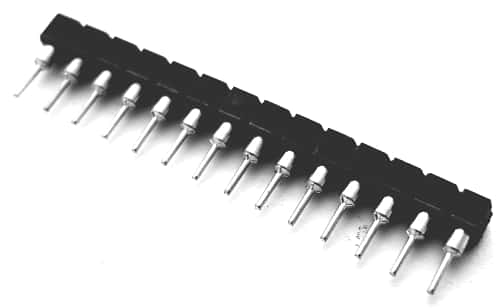

14 Position Breakaway SIP IC Header Socket Augat 510-AG91D14-ESL

14 Position Breakaway SIP IC Header Socket Augat 510-AG91D14-ESL

Manufacturer: Augat
Part Number: 510-AG91D14-ESL
Capacitance (uF): .000001
Amps: 3
Package: SIP
Number Leads/Terminals: 14
Color: Black
Obsolete: Yes
Termination Method: Solder

Price: $0.75
1830 available for immediate delivery
Code: C071APP11
Weight: 0.20oz ONZ
Quantity:
