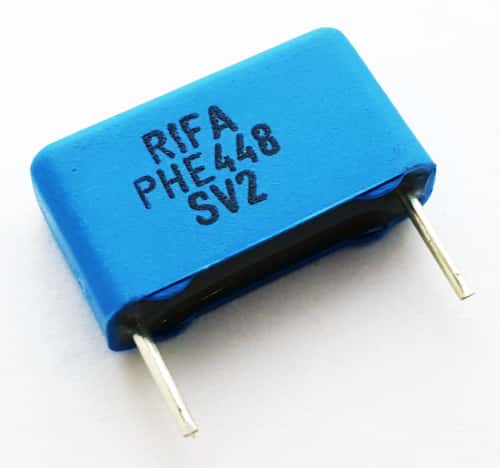

470pF 2000V Polypropylene Pulse Box Capacitor Evox-Rifa PHE448SB3470JR06

470pF 2000V Polypropylene Pulse Box Capacitor Evox-Rifa PHE448SB3470JR06

Manufacturer: Evox Rifa / Kemet
Part Number: PHE448SB3470JR06
Capacitance (uF): .00047
Voltage: 2000
Voltage (Vac): 700
Tolerance (%): 5
Mounting: PCB
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Material: Polypropylene
Color: Blue
Temperature: 105
RoHS Compliant: Yes
Shape: Rectangle
Termination Method: Solder

Price: $0.90
11998 available for immediate delivery
Code: G695APQ02
Weight: 0.01oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.90
10-99$0.75
100+$0.55
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Pulse Box Capacitors
Polypropylene Film/Foil

For use in high frequency and high voltage applications, requiring capacitors with extremely high current handling capability, .e. high dU/dt values.

Capacitance: 470pF
Voltage: 2000V
AC Voltage: 700VAC
Tolerance: 5%
Operating Temperature: -55 deg. C to 105 deg. C
Climate Category: 55/105/56
Dissipation Factor 1kHz @ 23 deg. C: .03%

Dimensions:
Length: 18.0mm (0.71")
Width: 5.5mm (0.22")
Height: 10.5mm (0.41")
Lead Space: 15.0mm (0.59")

Manufactured by: Evox-Rifa
Part Number: PHE448SB3470JR06

Full Datasheet: Evox-Rifa Film/Foil Box Capacitor 470pF 2KV

RoHS Compliant
