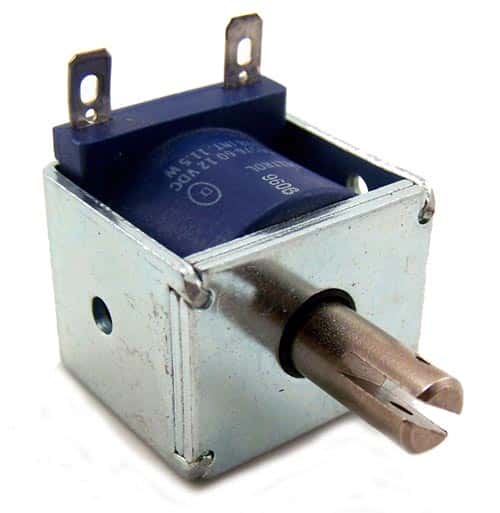

12V Solenoid Model D-28 Deltrol 56576-20

12V Solenoid Model D-28 Deltrol 56576-20

Manufacturer: Deltrol
Part Number: 56576-20

Price: $5.50
291 available for immediate delivery
Code: HW061PD
Volume Pricing
Quantity Price Each
1-9$5.50
10-99$5.25
100+$5.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Solenoids
Coil Treatment: Polyester Encapsuled with Spade Terminals
D-Frame
Dimensions:
- Length: 1.125 in.
- Width: 0.938 in.
- Height:1.188 in.

Duty Cycles (Cont=100% ; Intermittent=25%,3 min on ; Pulse=10%,100ms on)
DC: Cont = 11W ; Int = 29W ; Pulse = 115W
AC: Cont = 13VA ; Int = 59VA ; Pulse = 135VA

Maximum Stoke: .75 inch
Typical Force @ Int Duty Cycle 11.5W (100% Voltage, 77�F):
0.00 in = 65 oz
0.25 in = 22 oz
0.50 in = 10 oz
0.75 in = 6 oz

Applications:
Appliances
Generators
Printing Equipment
HVAC
Security
Beverage Dispensing Equipment
Commercial Laundry Equipment
Medical Equipment
Small Engines

Manufactured by: Deltrol
Part number: 56576-20 (Model D-28)

Datasheet 1: Deltrol Solenoids
Datasheet 2: D-28
