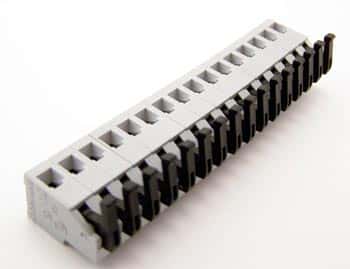

16 Position Springcon Terminal Block RIA AST0251604

16 Position Springcon Terminal Block RIA AST0251604

Manufacturer: RIA Connect
Part Number: AST0251604
Amps: 13
Voltage: 300
Mounting: Through Hole
Lead/Terminal Type: PCB Pin
Number Leads/Terminals: 16
Color: Grey
Shape: Rectangle
Termination Method: Solder

Price: $6.00
346 available for immediate delivery
Code: HW169PD
Volume Pricing
Quantity Price Each
1-9$6.00
10-99$5.75
100+$5.50
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Spring Clamp Terminal Blocks
Solderable
Centerline: 5mm / 0.197" horizontal wire entry

US Ratings:
Voltage: 300V
Current: 13A
Wire size: 28AWG - 14AWG

Insulation co-ordination according to EN 60664-1
Clearance and creepage distances: min 4mm
Insulating material class: CTI 400
Protection category according to IEC 529: IP20
Solder pin dimension: 1.0mm x 0.8mm
Recommended PC board hold diameter: 1.4mm
Solder pin length: 5mm
Pole size: 16
Color: grey

Dimensions
Length: 80.5mm (3.17")
Width: 11.0mm (0.43")
Overall height above board: 50.5mm (0.81")

Manufactured by: Ria Connect (Riacon)
Part Number: AST0251604 (AST025 Series)

Full datasheet: AST0251604
