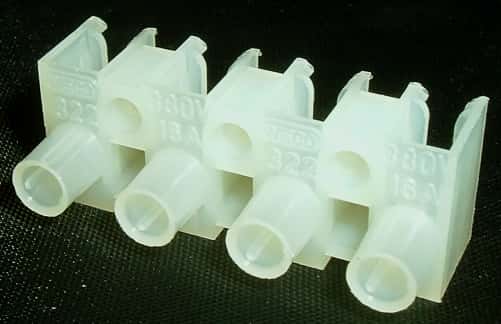

4 Position Plug-In Connector System for PCB WECO 322-FBG-04

4 Position Plug-In Connector System for PCB WECO 322-FBG-04

Manufacturer: WECO
Part Number: 322-FBG/04
Amps: 16
Voltage: 380
Number Leads/Terminals: 4
Color: Off White
Shape: Rectangle

Price: $1.25
1229 available for immediate delivery
Code: HW227PE05
Weight: 0.17oz ONZ
Volume Pricing
Quantity Price Each
1-9$1.25
10-99$1.15
100+$1.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Plug-In Connector System for Printed Circuit Boards
Terminal Block with Push on Contacts
Off-White
Number of Poles: 4
No screws - push in only

Ratings (Stamped on Part)
Current: 16.0A
Voltage: 380V

Center to Center Spacing: 10mm (0.394")
Recommended PCB Hole Diameter: 1.3mm (0.051")

Temperature limits:
-Short Time: 140°C
-Continuous: RTI 105°C
-Low Limit: -40°C
Comparative Tracking Index: CTI<600V
Oxygen Index Rating: 25%

Materials:
Molding: Polyamide, UL 94, V-2
Terminal Body: Tin Plated Copper Alloy
Spring Clip: Stainless Steel Strip
Solder Pin: Tin Plated Copper Alloy

Manufactured by: WECO
Part Number: 322-FBG/04

Full Datasheet: 322-FBG/04
