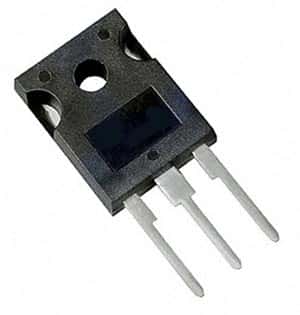

IRGPH40FD2 IGBT Insulated Gate Bipolar Transistor International Rectifier

IRGPH40FD2 IGBT Insulated Gate Bipolar Transistor International Rectifier

Manufacturer: International Rectifier
Part Number: IRGPH40FD2
Package: TO-247AC
Number Leads/Terminals: 3

Price: $14.29
7 available for immediate delivery
Code: IC656APH01
Weight: 0.20oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

IGBT Transistors

Features:
- N-Channel
- Switching-loss rating includes all "tail" losses
- Optimized for medium operating frequency (1 to 10kHz)

Maximum Ratings
Collector-to-Emitter Voltage: 1200V
Continuous Collector Current (IC @ TC = 25°C): 29A
Pulsed Collector Current: 58A
Gate-to-Emitter Voltage: ±20V
Reverse Voltage Avalanche Energy: 15mJ
Maximum Power Dissipation (PD @ TC = 25°C): 160W
Operating Junction and Storage Temperature Range: -55°C to 150°C

Electrical Characteristics (TJ=25°C unless otherwise noted):
Emitter-to-Collector Breakdown Voltage (VGE = 0V, IC = 1.0A): 20V min.
Temperature Coefficient of Breakdown Voltage (VGE = 0V, IC = 1.0mA): 1.3V/°C typ.
Temperature Coefficient of Threshold Voltage (VCE = VGE, IC = 250uA): -13mV/°C typ.
Gate-to-Emitter Leakage Current (VGE = ±20V): ±100nA max.

Typical Switching Characteristics (TJ=25°C unless otherwise noted):
(SEE DATASHEET FOR CONDITIONS)
Total Gate Charge (turn-on): 45nC
Turn-On Delay Time: 33ns
Rise Time: 17ns
Fall Time: 210ns
Total Switching Loss: 4.0mJ
Internal Emitter Inductance: 13nH
Input Capacitance: 1200pF

Manufactured by: International Rectifier
Part Number: IRGPH40FD2

Full Datasheet: International Rectifier IGBT IRGPH40FD2
