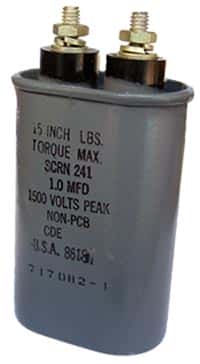

1.0uF 1.0MFD 1500V Radial Paper Film Capacitor CDE SCRN241
![]() |
Manufacturer: Cornell Dubilier
Part Number: SCRN241
Capacitance (uF): 1uF
Voltage: 1500V
Tolerance (%): 10%
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Material: Metallized Film
Obsolete: Yes
Price: $48.00
3 available for immediate delivery
Code: J126APE10
Weight: 7.04oz
Additional Information
Paper Film Commutating CapacitorsSCR Series
A Case
Screw Terminals
Dielectric Material: Metallized Paper
Features:
- Conforms to EIA RS401 for power semiconductor applications
- High Voltage
- High Current
- High Frequency
- High Stability
Capacitance: 1.0uF
Voltage: 1,500Vpk (1.5kV)
Tolerance: 10%
Temperature Range: -40 to 65 deg. C
Surface Temperature: 80 deg. C
Dimensions:
Height: 73.15mm (2.88")
Width: 54.86mm (2.16")
Thickness: 33.27mm (1.31")
Manufactured by: Cornell Dubilier
Part Number: SCRN241
Full Datasheet: SCRN241
