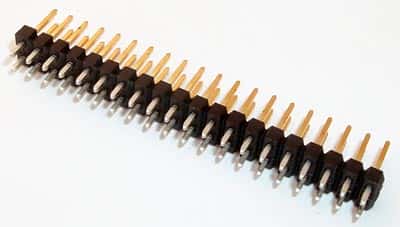

40 Position PCB Breakaway Header Connector Molex 10-89-1401

40 Position PCB Breakaway Header Connector Molex 10-89-1401

Manufacturer: Molex
Part Number: 10-89-1401
Amps: 3
Voltage: 250
Mounting: Through Hole
Number Leads/Terminals: 40
Color: Black
Temperature: 105
Obsolete: Yes
Shape: Rectangle
Row Spacing (mm): 1.75
Pitch (mm): 2.54

Price: $2.50
242 available for immediate delivery
Code: J548APK03
Weight: 0.10oz ONZ
Volume Pricing
Quantity Price Each
1-9$2.50
10-99$2.25
100+$2.00
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

PCB Breakaway Header Connectors
Obsolete
Series: 8624
Gold Plated Mating Pins

Electrical Characteristics:
Current (Max per Contact): 3.0A
Voltage (Max): 250V

Physical Characteristics:
Number of Positions: 40
Number of Rows: 2
Header Type: Breakaway
Pitch: 2.54mm (0.10")
Mounting Style: Through Hole
Mounting Angle: Vertical
Contact Type: Male Pin
Contact Mating Length: 6.10mm (0.24")
PC Tail Length: 2.79mm (0.110")
Termination Method: Solder

Dimensions:
Overall Length: 50mm (1.99")
Overall Width: 5.13mm (0.20")
Overall Height: 11.1mm (0.437")

Applications: Board-to-Board, Signal, Wire-to-Board

Manufactured by: Molex
Part Number: 10-89-1401

Full Datasheet: Molex PCB Stackable Breakaway Header 10-89-1401 40 Position
