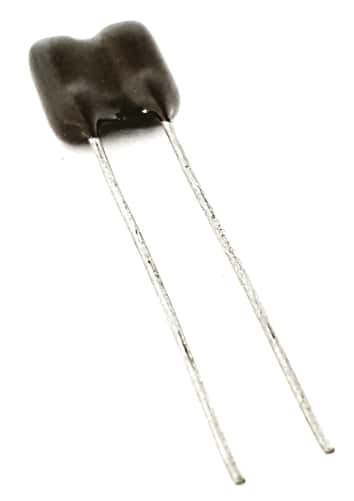

1000pF 1000V 1KV 5% Radial Silver Mica Capacitors CDE CDV16FF102J03

1000pF 1000V 1KV 5% Radial Silver Mica Capacitors CDE CDV16FF102J03

Manufacturer: Cornell Dubilier
Part Number: CDV16FF102J03
Capacitance (uF): .001
Amps: 225
Voltage: 1000
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Radial
Number Leads/Terminals: 2
Color: Brown
Temperature: 150
Termination Method: Solder

Price: $3.50
729 available for immediate delivery
Code: K294BPQ10
Weight: 0.03oz ONZ
Volume Pricing
Quantity Price Each
1-9$3.50
10-99$2.50
100+$2.25
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Radial Silver Mica Capacitors
For Snubber and RF Applications

Features:
- Handles up to 9.0 amps rms continuous current
- Very low ESR from 10 to 100 MHz
- Low, notch-free impedance to 1GHz
- Stable: no capacitance change with (V), (t), and (f)
- Very high Q at UHF/VHF frequencies
- dV/dt capability up to 275,000 V/μs
- 1,500 amps peak current capability

Capacitance: 1,000pF
DC Voltage: 1,000 VDC (1KV)
AC Voltage: 350 VAC
Peak Current: 225A
Max. Continuous Current @ 85 Deg. C:
- @ 100kHz: 0.22A
- @ 250 kHz: 0.55A
- @ 500 kHz: 1.1A
- @ 1MHz: 2.2A
- @ 2.5MHz: 3.2A
- @ 5MHz: 3.2A
Tolerance: 5%
Temperature: -55 to 105 Deg. C.

Measurements:
Length: 11.7mm (0.46")
Height: 12.7mm (0.50")
Thickness: 4.4mm (0.17")

Manufactured by: Cornell Dubilier
Part Number: CDV16FF102J03

Full Datasheet: Silver Mica Capacitors 1,000 pF 1,000 VDC CDE
