44pF 500V .5pF Tol. Dipped Silver Radial Mica Capacitor Sangamo CD15ED440D03

44pF 500V .5pF Tol. Dipped Silver Radial Mica Capacitor Sangamo CD15ED440D03

Manufacturer: Hartland Controls®
Part Number: HCKY300V440Z
Capacitance (uF): 30
Voltage (Vac): 440
Tolerance (%): 5
Package: Can
Lead/Terminal Type: Quick Connect
Number Leads/Terminals: 2 x 44
Material: Aluminum
Color: Silver
Temperature: 70
Shape: Oval
Size (mm): 70.1 x 87.9 x 45.5

Price: $8.00
77 available for immediate delivery
Code: K491APS08
Weight: 9.00oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

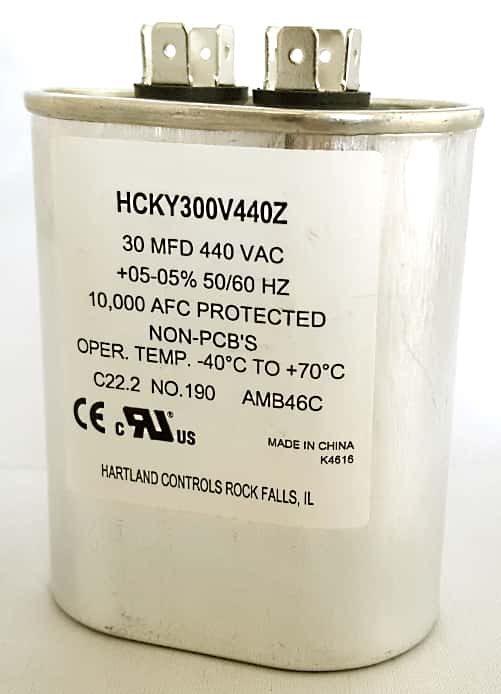

Motor Start/Run Capacitors
Oval Case

Features:
- QC terminals: .250″ x .032″
- Unpainted aluminum construction
- Aluminum oil filled construction
- Designed & manufactured in accordance with UL 810 and EIA standard RS-456
- UL recognized internal protection bridge capable of interrupting up to 10K amp

Capacitance: 30.0 uF
Voltage: 440 VAC
Tolerance: 5%
Frequency: 50/60 Hz
Leakage Current: 30.0uA
Dissipation Factor: 0.1% max.
Operating Life: 22,000 hours with 94% survival
Temperature: -40 to 70°C

Case Dimensions (excluding terminals):
Width: 70.5mm (2.77")
Height: 87.9mm (3.45")
Thickness: 45.5mm (1.78")

Manufactured by: Hartland Controls®
Part Number: HCKY300V440Z

Full Datasheet: Hartland® HCK Series Oval Motor Run Capacitor 30.0mFD 440V AC
