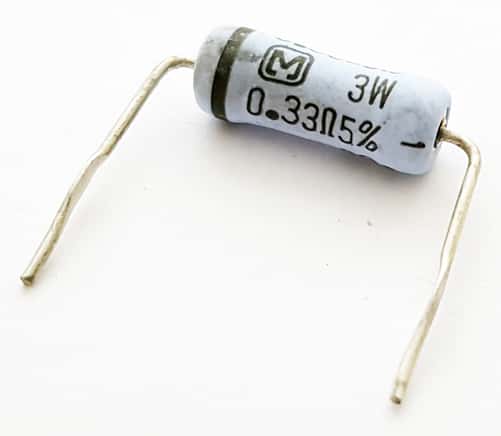

3W 0.33 ohm 5% Metal Oxide Film Resistor Flameproof Panasonic ERX3FJR33H
Manufacturer: Panasonic
Part Number: ERX3FJR33H
Voltage: 700
Voltage (Vac): 600
Watts: 3
Ohms: .33
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Blue
Temperature: 200
Shape: Round (Cylindrical)
Termination Method: Solder
Price: $0.35
2518 available for immediate delivery
Code: R010BPP03
Weight: 0.02oz
|
Additional Information
Metal Oxide Film ResistorsFeatures:
- Flame-Proof
- Miniature Size
- High Reliability
Metal oxide resistors are constructed by placing an oxide of metal (such as tin) to form a coating on the surface. Metal oxide resistors generally have very accurate tolerances. Metal oxide power type resistors can be utilized for both general and surge applications in the automotive, industrial and consumer industries
Power Rating: 3.0 Watt
Resistance: 0.33 Ohm
Tolerance: 5%
Max. Overload Voltage: 700V
Dielectric Withstanding Voltage: 1000 VAC
Temperature Coefficient: 300ppm
Operating Temperature: -55 to 200 deg. C
Manufactured by: Panasonic
Part Number: ERX3FJR33H
Full Datasheet: Panasonic ERX Series Metal Film Resistor 3.0W 0.33 ohm
