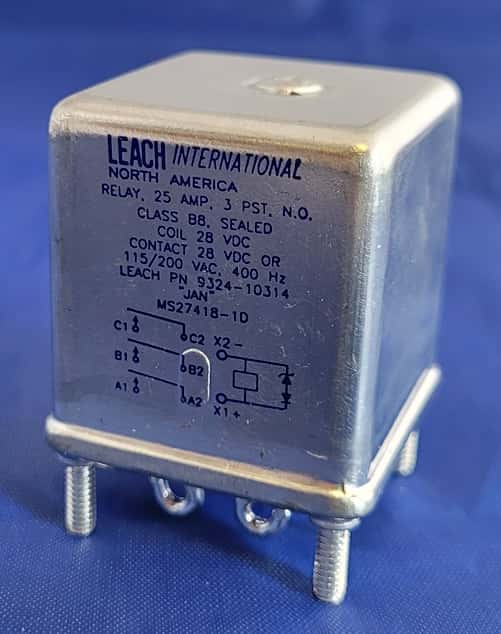

25A 28VDC 3PST NO Relay Leach® 9324-10314 MIL JAN MS27418-1D

25A 28VDC 3PST NO Relay Leach® 9324-10314 MIL JAN MS27418-1D

Manufacturer: Leach®
Part Number: 9324-10314 / MIL # JAN MS27418-1D
Amps: 25
Voltage: 28
Voltage (Vac): 115 / 200
Lead/Terminal Type: Solder Hook
Number Leads/Terminals: 8
Color: Silver
Temperature: -70 to 125°C
Military Spec: Yes
Shape: Box
Size (mm): 1.53 x 1.53 x 1.68

Price: $800.00
2 available for immediate delivery
Code: REL185APW01
Weight: 5.20oz ONZ

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

3PST MIL-PRF-6106 Sealed Relays
Non-Latching
Class B8
50,000 Cycles (@ rated load)

Contact Rated: 28VDC or 115/200VAC, 400Hz
Current: 25.0A
Coil
Operating Voltage: 28.0VDC
Pick-up Voltage: 18.0VDC
Drop-out Voltage: 7.0VDC
Resistance: 160Ω
Temperature: -70 to 125°C

Manufactured by: Leach®
Part Number: 9324-10314
Military Number: JAN MS27418-1D

Full Datasheet: Leach® 9324 Series Military Relay 25A 28V DC
