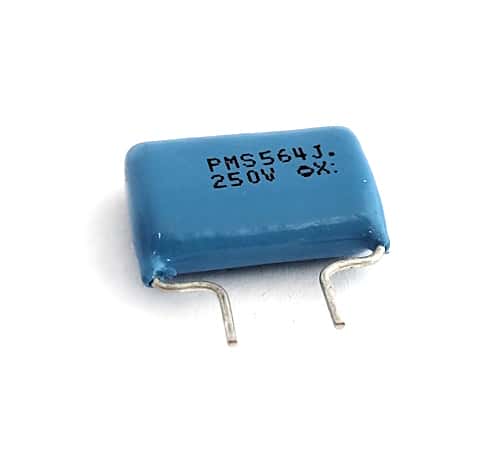

0.56uF 250V Metalized Polypropylene Film Capacitor Taitsu 7U2E564JUSB

0.56uF 250V Metalized Polypropylene Film Capacitor Taitsu 7U2E564JUSB

Manufacturer: Taitsu®
Part Number: 7U2E564JUSB
Capacitance (uF): .56
Voltage: 250
Tolerance (%): 5
Mounting: Through Hole
Lead/Terminal Type: Radial /Trimmed / Formed
Number Leads/Terminals: 2
Material: Metallized Polypropylene
Color: Blue
Temperature: -40 to 85°C
RoHS Compliant: Yes
Pitch (mm): 7.5
Termination Method: Solder
Size (mm): 22.5 x 17 x 8.5

Price: $0.30
683 available for immediate delivery
Code: RM125APF09
Weight: 0.08oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.30
10-99$0.28
100+$0.25

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Radial Film Capacitors
PMS Series
Factory Trim Leads

Features:
- Excellent stability in high current and heat radiation applications
- Currents up to 25A
- Frequencies of 100KHz and up

Capacitance: 0.56uF
Voltage: 250V
Tolerance: 5%
Operating Temperature Range: -40 to 85°C
Dissipation Factor: less than 0.001

Dimensions
Maximum Length: 22.5mm (0.886")
Maximum Height: 17.0mm (0.669")
Maximum Thickness: 8.5mm (0.335")
Lead Space: 7.5mm (0.295")
Lead Length (after bend): 5.0mm (0.197")
Lead Diameter: 0.8mm (0.0315")

Applications:
- TV, High-definition TV, CAD/CAM and graphic display, for S-shaping correction
- Power Supply
- Lighting

Manufactured by: Taitsu®
Part Number: 7U2E564JUSB

Full Datasheet: 0.56mF 250V Metallized Polypropylene Film Capacitors

RoHS Compliant
