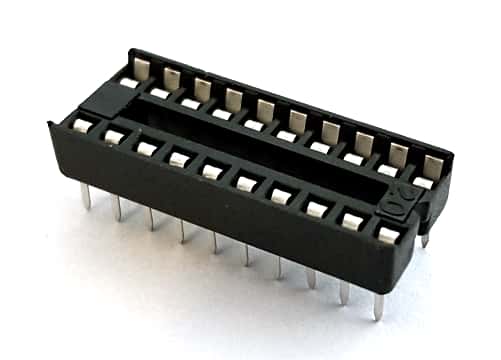

20 Pin IC Socket Dual Wipe Open Frame 3M 4820-3000-CP

20 Pin IC Socket Dual Wipe Open Frame 3M 4820-3000-CP

Manufacturer: 3M
Part Number: 4820-3000-CP
Amps: 1
Voltage (Vac): 100
Mounting: Through Hole
Number Leads/Terminals: 20
Color: Black
Temperature: 85
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open

Price: $0.50
200 available for immediate delivery
Code: S051APQ10
Weight: 0.02oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.50
10-99$0.40
100+$0.30
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

IC Sockets

Using IC sockets is advisable on boards with point to point wiring because replacing a defective IC is time consuming and can possibly damage your prototype board. The use of an IC socket is inexpensive compared to the time and effort required to replace an IC chip. IC sockets also reduce the possibility of damaging the board when swapping out IC's.

Features
- Dual Contacts
- Stackable end-to-end and side-to-side

Number of Pins: 20
Row Spacing: 7.62mm (0.30")
Pitch: 2.54mm (0.10")
Mounting Style:Through Hole
Termination Method: Solder
Frame Type: Open

Insulation Resistance: 500M ohm
Current Rating: 1.0A
Withstanding Voltage: 100 VAC for 1 minute
Temperature Rating: -25 to 85 Deg. C.
Insertion Force: 340 grams max. per contact
Withdrawal Force: 80 grams min. per contact

Dimensions
Length: 25.27mm (0.995")
Width: 10.16mm (0.40")
Height: 5.08mm (0.20")

Manufactured by: 3M
Part Number: 4820-3000-CP

Full Datasheet: 3M IC Socket 20 Pin DIP Dual Leaf
