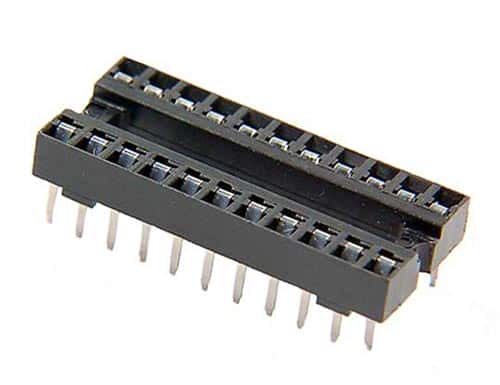

22 Pin IC Socket Open Frame Burndy® DILB22P-108T

22 Pin IC Socket Open Frame Burndy® DILB22P-108T

Manufacturer: Burndy®
Part Number: DILB22P-108T
Voltage (Vac): 1000 VRMS
Ohms: .02
Package: DIP
Mounting: Through Hole
Number Leads/Terminals: 22
Color: Black
Temperature: 125
Shape: Rectangle
Row Spacing (mm): 10.16
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open
Size (mm): 27.97 x 12.5 x 4.3

Price: $0.35
11596 available for immediate delivery
Code: SK023PF02
Weight: 0.05oz ONZ
