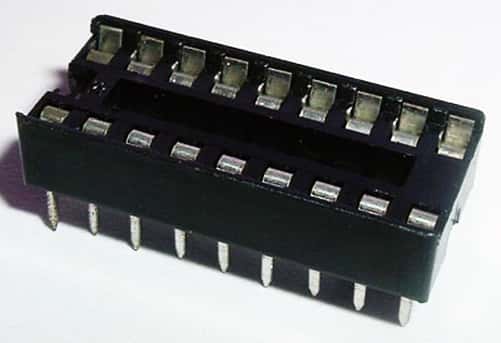

18 Pin Dual Wipe Open Frame IC Socket Augat 318-AG19DC

18 Pin Dual Wipe Open Frame IC Socket Augat 318-AG19DC

Manufacturer: Augat
Part Number: 318-AG19DC
Amps: 2
Ohms: .01
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 18
Material: Thermoplastic
Color: Black
Temperature: 125
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open

Price: $0.25
1840 available for immediate delivery
Code: SK050APN09
Weight: 0.20oz ONZ
Volume Pricing
Quantity Price Each
1-9$0.25
10-99$0.23
100+$0.20
