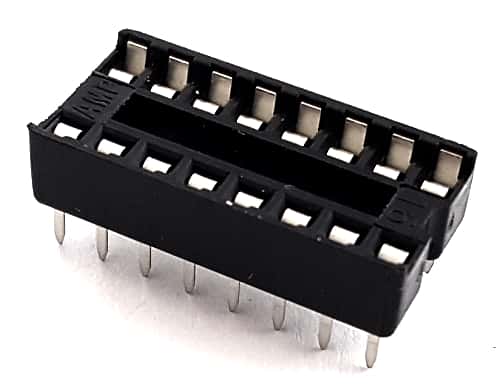

16 Pin Dip IC Socket Open Frame Tyco® 1-390261-4

16 Pin Dip IC Socket Open Frame Tyco® 1-390261-4

Manufacturer: Tyco®
Part Number: 1-390261-4
Amps: 1
Voltage: 250
Voltage (Vac): 250
Ohms: .02
Package: Dip
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 16
Material: Thermoplastic
Color: Black
Temperature: 105
Obsolete: Yes
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open

Price: $0.15
454 available for immediate delivery
Code: SK059APS02
Weight: 0.10oz ONZ
