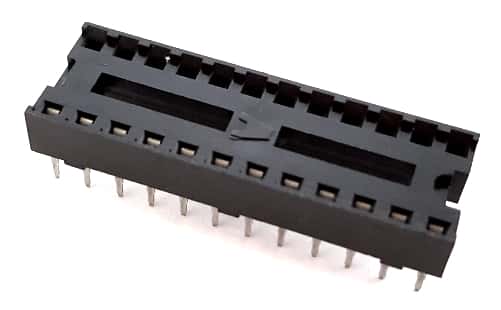

24 Pin Single Beam Contact Dip IC Socket Augat® 224-AG30D

24 Pin Single Beam Contact Dip IC Socket Augat® 224-AG30D

Manufacturer: Augat®
Part Number: 224-AG30D
Amps: 2
Voltage (Vac): 1000
Package: Dip
Mounting: Through Hole
Lead/Terminal Type: PC Pin
Number Leads/Terminals: 24
Material: Thermoplastic
Color: Black
Temperature: 105
Shape: Rectangle
Row Spacing (mm): 7.62
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open
Size (mm): 30.48 x 10.16 x 4.98

Price: $0.50
1420 available for immediate delivery
Code: SK077APS10
Weight: 0.20oz ONZ
