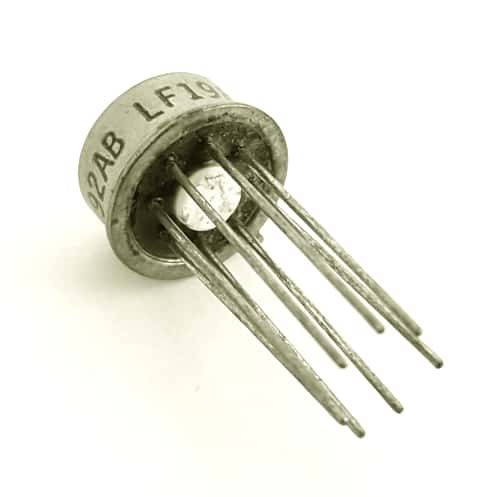

LF198AH Vintage Op Amp Sample-and-Hold Circuit National Semiconductor

LF198AH Vintage Op Amp Sample-and-Hold Circuit National Semiconductor

Manufacturer: National Semiconductor
Part Number: LF198AH
Voltage: 15
Watts: .5
Package: TO-99-8
Mounting: Through Hole
Number Leads/Terminals: 8
Color: Silver
Temperature: 125
Obsolete: Yes
Termination Method: Solder

Price: $10.00
400 available for immediate delivery
Code: T787APQ10
Weight: 0.10oz ONZ
