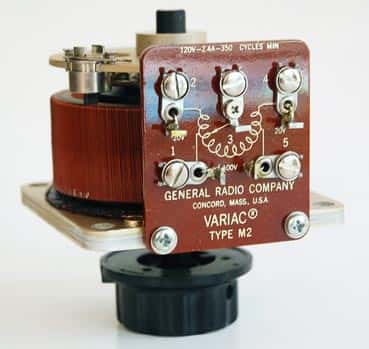

General Radio Variac Autotransformer M2

General Radio Variac Autotransformer M2

Manufacturer: General Radio
Part Number: M2

Price: $199.00
Sorry, we are currently sold out of
'General Radio Variac Autotransformer M2'.
Please check back later.
Code: VAR101PD
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information


Variac Adjustable Autotransformers
New Old Stock
M Series
400Hz
In Box with Original Instructions

The variac autotransformer is an efficient, trouble� free device for controlling ac voltage and any other quan�tities that derive from ac voltage: heat output, light in�tensity, motor speed, and the outputs of various power supplies. The name "variac" comes from the unit's func�tion - "vary ac".

Unlike most transformers, the Variac has a transforma�tion ratio that can be smoothly and continuously changed so the output of the unit can be controlled from zero to line voltage or even higher.

The variac is a transformer therefore it is has several feature benefits.
Efficient: Transforms power more efficiently than rheostats.
Durable: Runs cool
Overloadable: Withstands 1000% short term overloads
Quiet: Adds no noise or distortion to the line
Reliable: Exclusive Duratrak� contact surface prevents injurious high-temperature oxidation and resultant brush-track deterioration

Uncased
3 or 4 Hole Panel Mount
Single Phase
400c/s(Hz) No Load Watts: 3.5
Ounce-Inch Driving Torque: 5-10
Contact Surface: Duratrak
Weight: 2 lbs
Dimensions: 3.25 x 3.69 x 2.69 inches

Line Voltage Operation:
Input Volts: 120
Output Volts: 0-120
Rated Output Amps: 2.4
Max Output amps 3.1
Max KVA: 0.37

Overvoltage Operation:
Input Volts: 120
Output Volts: 0-140
Rated Output Amps 2.4
Max Output Amps 2.4

Manufactured by: General Radio Company
Part number: M2

Full datasheet: M2
