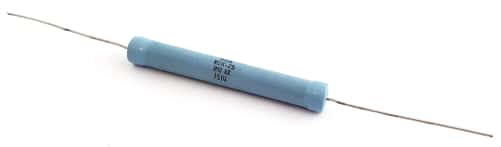

6W 1M Ohm 10% Metal Oxide Resistor H.V. Dale®/Vishay® ROX2001M00KKELS

6W 1M Ohm 10% Metal Oxide Resistor H.V. Dale®/Vishay® ROX2001M00KKELS

Manufacturer: Dale® / Vishay®
Part Number: ROX2001M00KKELS
Voltage: 15,000
Watts: 6
Ohms: 1,000,000
Tolerance (%): 10
Mounting: Through Hole
Lead/Terminal Type: Axial
Number Leads/Terminals: 2
Color: Blue
Temperature: -55 to 180°C
RoHS Compliant: Yes
Obsolete: Yes
Shape: Round (Cylindrical)
Termination Method: Solder
Size (mm): 7.87 x 52.07

Price: $18.00
Sorry, we are currently sold out of
'6W 1M Ohm 10% Metal Oxide Resistor H.V. Dale®/Vishay® ROX2001M00KKELS'.
Please check back later.
Code: WW188BPT06
Weight: 0.30oz ONZ
Quantity:

First Class Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA First Class Shipping Rates
$00.01
 $25.00
 $5.85
$25.01
 $35.00
 $6.85
$35.01
 $45.00
 $8.85
$45.01
 $55.00
 $9.85
$55.01
 $75.01
 $11.85
$75.01
 $100.00
 $12.85
$100.01
 $200.00
 $14.85
$200.01
 $300.00
 $15.85
$300.01
 $500.00
 $17.85
$500.01
 +
 $18.85

Priority Mail Shipping Costs:

Order Total Minimum
 Order Total Maximum
 USA Priority Mail Shipping Rates
$00.01
 $25.00
 $10.50
$25.01
 $35.00
 $11.50
$35.01
 $45.00
 $12.50
$45.01
 $55.00
 $13.50
$55.01
 $75.01
 $14.50
$75.01
 $100.00
 $16.50
$100.01
 $200.00
 $18.50
$200.01
 $300.00
 $21.50
$300.01
 $500.00
 $24.50
$500.01
 +
 $25.50

Canada First Class International (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada First Class International
$00.01
 $45.00
 $15.95
$45.01
 $90.00
 $29.95
$90.01
 $150.00
 $49.95
$150.01
 $300.00
 $59.95
$300.01
 $700.00
 $79.95
$700.01
 $2000.00
 $99.95

Canada Priority Mail (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 Canada Priority Mail
$00.01
 $45.00
 $36.95
$45.01
 $90.00
 $45.95
$90.01
 $150.00
 $59.95
$150.01
 $300.00
 $79.95
$300.01
 $700.00
 $99.95
$700.01
 $2000.00
 $109.95

International - Outside US / CA (see Shipping page for exclusions)

Order Total Minimum
 Order Total Maximum
 International - Outside US / CA
$100.00
 $150.00
 $79.95
$150.01
 $300.00
 $99.95
$300.01
 $500.00
 $139.95
$500.01
 $1000.00
 $169.95
  View shipping costs

Additional Information

Metal Oxide Film Resistors
OBSOLETE

Features:
- High Voltage
- Flame Retardant
- For oil bath or open air operation

Power Rating: 6.0 W
Resistance: 1 Megohm
Tolerance: 10%
Working Voltage: 15,000 V
Temperature Coefficient: 100ppm/°C

Dimensions:
Length: 52.07mm (2.05")
Diameter: 7.87mm (0.31")
Lead Length: 38.1mm (1.5")

Manufactured by: Dale®/Vishay®
Part Number: ROX2001M00KKELS

Full Datasheet: ROX Series 1.0 MOhm 6 Watt HV Metal Oxide Resistor

RoHS Compliant
