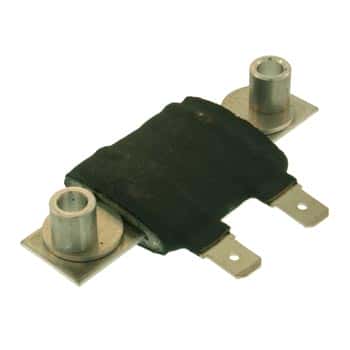

30W 1 ohm Power Wire Wound Resistors Flat HL-24-18N
Price: $5.25
Sorry, we are currently sold out of
'30W 1 ohm Power Wire Wound Resistors Flat HL-24-18N'.
Please check back later.
'30W 1 ohm Power Wire Wound Resistors Flat HL-24-18N'.
Please check back later.
Code: WW470PD
Additional Information
Power Wirewound Resistor
Type HL Flat
Material:
Core: Ceramic, steatite
Coating: Special High Temperature Silicone
Terminals: Nickel
Terminal Bands: Steel
Electrical Specs:
Power Rating: 30W
Resistance: 1 Ω
Tolerance: 5%
Technical Specs:
Temperature Coefficient: ±50ppm/°C
Dielectric Withstanding Voltage: 1000V
-(Terminal to Mounting Hardware)
Short Time Overload: 10 x rated power for 5 s
Maximum Working Voltage: (P x R)^1/2
Insulation Resistance: 1000 MΩ minimum dry, 100 MΩ minimum after moisture test
Operating Temperature: -55°C to 350°C
Dimensions:
-Total Length: 2.5" (63.5mm)
-Width (including terminals): 1.6" 40.8mm
-Thickness: .367" (9.14mm)
-Height (including mounting hardware): .595" (15.12mm)
Features:
High temperature silicon coating
Mounting accommodations ideally suited to high density packaging
Self-stacking hardware for horizontal or vertical placement
Withstands high vibrations without loosening
Mounting hardware functions as a heat sink allowing greater heat dissipation and less derating of stacked units
Manufactured by: Dale
Part Number: HL-24-18N 1Ω 5%
Full Datasheet: HL-24-18N
