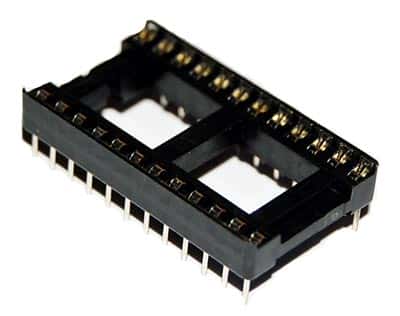

24 Pin IC Socket Open Frame Amp 2-641604-3

24 Pin IC Socket Open Frame Amp 2-641604-3

Manufacturer: Amp
Part Number: 2-641604-3
Package: Dip
Lead/Terminal Type: Through Hole
Number Leads/Terminals: 24
Material: Glass Filled Thermoplastic
Color: Black
Shape: Rectangle
Row Spacing (mm): 15.24
Pitch (mm): 2.54
Termination Method: Solder
Frame Type: Open

Price: $12.00
401 available for immediate delivery
Code: SK028APH01
Weight: 0.08oz ONZ
